Architecture Overview

VeilNet Architecture Overview

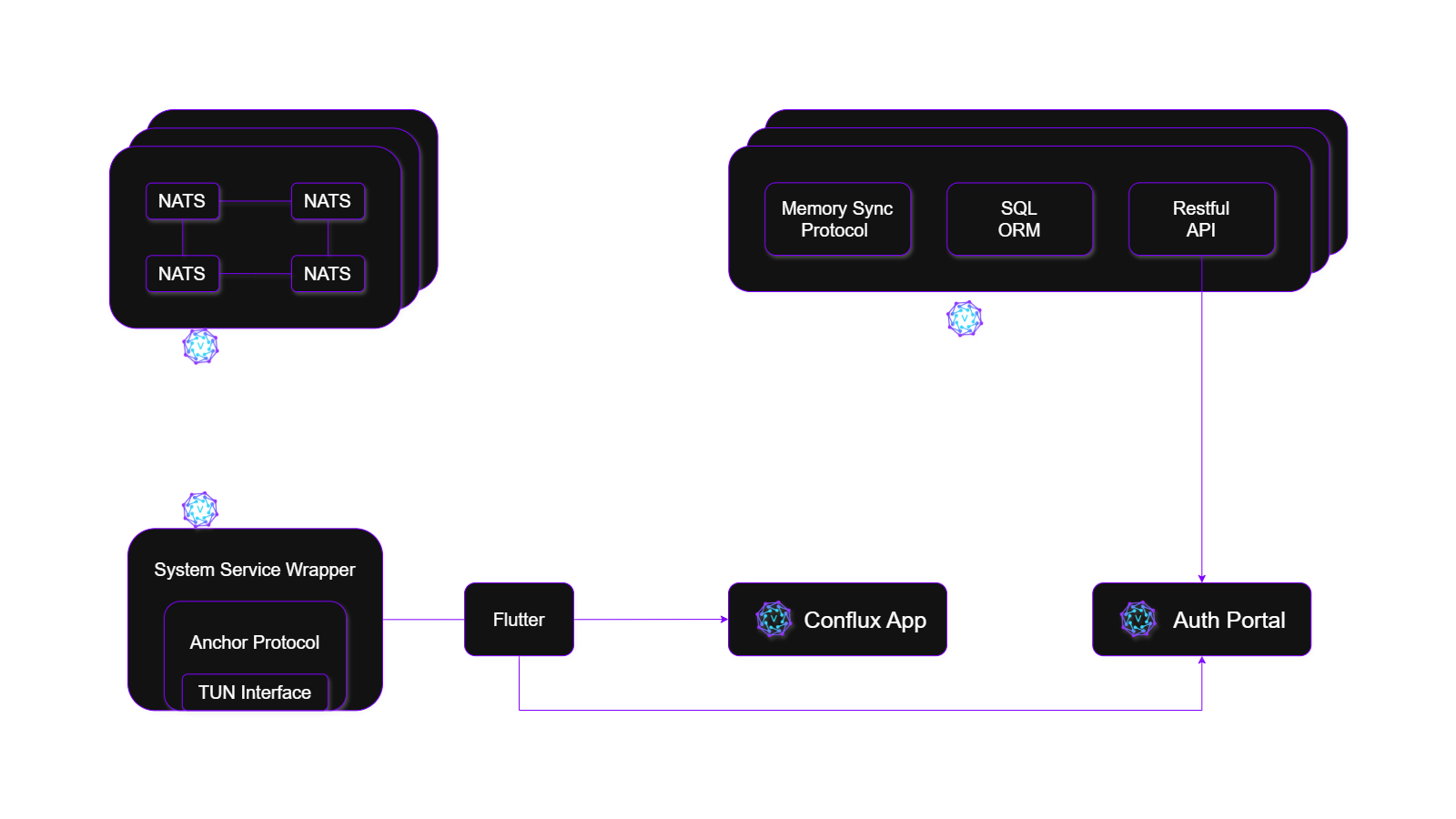

VeilNet is built on three core components—Master, Guardian, and Conflux—that work together to create a post-quantum secure, self-healing overlay network.

Master (NATS Super Cluster)

Master is a globally distributed NATS super cluster that serves as the control-channel message broker. All Conflux nodes and Guardian services use this infrastructure to:

• Exchange control messages and coordinate routing
• Propagate health signals across the network
• Negotiate ephemeral multi-hop paths

Important: No user traffic flows through Master. It exclusively carries encrypted control and coordination events, keeping the control plane separate from the data plane.

Guardian (Stateful API Microservices)

Guardian is a set of API microservices that provide VeilNet's management, authentication, and orchestration capabilities. Unlike traditional cache-based stateless APIs, Guardian uses VeilNet's no-caching memory sync protocol to keep instances synchronized, enabling them to operate as stateful API servers while maintaining horizontal scalability.

Guardian provides:

• Memory sync protocol: Real-time state propagation across instances
• SQL ORM-backed persistence: Reliable data storage and retrieval
• RESTful APIs: Management interfaces for realms, identities, policies, and billing

Conflux (Edge Node + Client Stack)

Conflux runs on user devices, servers, and containers to join them into a Realm. At its core, Conflux consists of:

• System Service Wrapper: Integrates with the host operating system
• Anchor Protocol: VeilNet's proprietary transport and control protocol that establishes encrypted, multi-hop, post-quantum secure channels
• TUN Interface: Injects and captures IP packets from the host or container network

On top of the service layer, Conflux includes:

• Flutter-based UI framework: Unified cross-platform user experience
• Conflux App: Primary user-facing client application
• Auth Portal: Handles login, social OAuth, and account management, all backed by Guardian

How It All Works Together

These components create an intelligent, post-quantum overlay network where:

• Control realm (Master + Guardian): Manages coordination, authentication, and orchestration
• Data realm (Conflux + Anchor + TUN): Handles all user traffic and network operations

The control and data realms are tightly integrated yet cleanly separated, enabling VeilNet to remain secure, adaptive, and easy to operate at scale.
